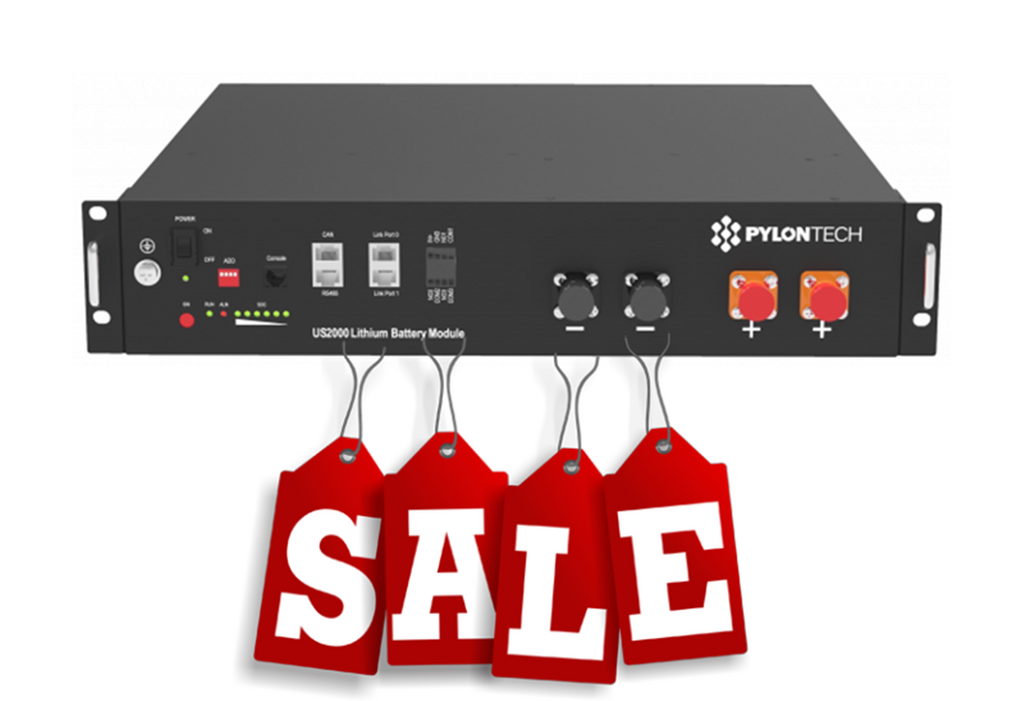

SALE - PYLONTECH US2000C 48V 2.4 kWh Lithium Solar storage battery

US2000 PYLONTECH Lithium battery

The new US2000 Lithium battery series is a perfect solution for residential storage facilities, with STANDARD 48v/50AH specification, up to 90% usable capacity.

Features:
Vertical industry integration guarantees more than 6000 cycles with 90% DoD
Sleek, compact design fits your home environment
Provides up to 5KW with a single 2.4 KWh module
Modular design gives end-customers the ability to choose capacity
Compatible with most of the hybrid inverters available.
Easy fastening of the buckle that minimizes installation time and cost

Specification
Unit name: US2000C
Nominal voltage: 48V
Rated capacity WH: 2400
Capacity usable power (Wh): 2200
Physical dimension (mm): 440 * 410 * 89
Weight (Kg): 24
Discharge Voltage (V): 45 ~ 54
Charging Voltage (V): 52.5 ~ 54
Maximum discharge current (A): 5kW @ 15s
Maximum charging current (A): 5kW @ 15s
Communication: RS232, RS485, CAN
Load temperature: 0 ℃ ~ 50 ℃
Discharge temperature: -10 ℃ ~ 50 ℃
Shelf temperature: -20 ℃ ~ 60 ℃
Process title: TüV /CE/UN 38.3
Life cycle: 4500 (90% DoD)
