Description
Rated power: 545W
Efficiency: 21.1%
Width: 1,134mm
Height: 2,279mm

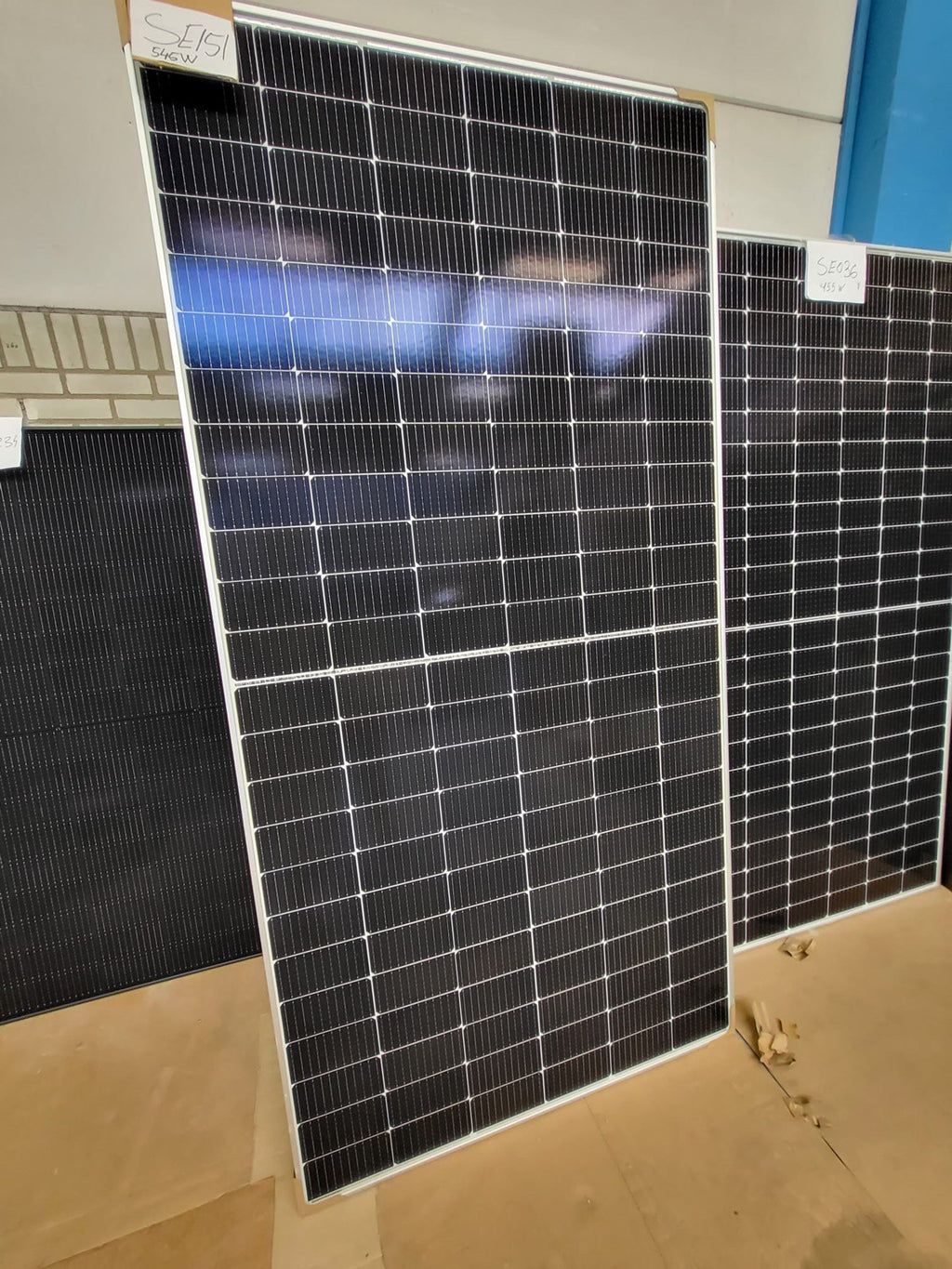

JAM72S30 is the latest in JA Solar's 72 Cell range. This module with its 11Bus-bar half-cell configuration can reach an incredible power of 545Wp.
This module offers better temperature-dependent performance and better tolerance to mechanical stress.
Features:
Higher output power
Less shading
Lower resistance losses
Lower LCOE
Warranty: 12 years on the product and 25 years on the linear output power.
Specifications:
Manufacturer product number: JAM72S30-545/MR
Weight: 28.6 kg
Rated power: 545 W
MCS Reference: BABT 8515-218-545W
Length: 2,279 mm
Width: 1,134 mm
Depth: 35 mm
VMPP: 41.8 V
IMPP: 13.04 A
Isc: 13.93 A
Voc : 49.75 V
Temp. Coefficient (Mpp): -0.35 %
Clamp position on panel: Long side only
Connector Type: MC4
Efficiency: 21.1 %
Pallet size: Oversized
Download
Data Sheet
Product title
JA Solar 545W Mono PERC Half-Cell MBB MC4 Solar Panel
