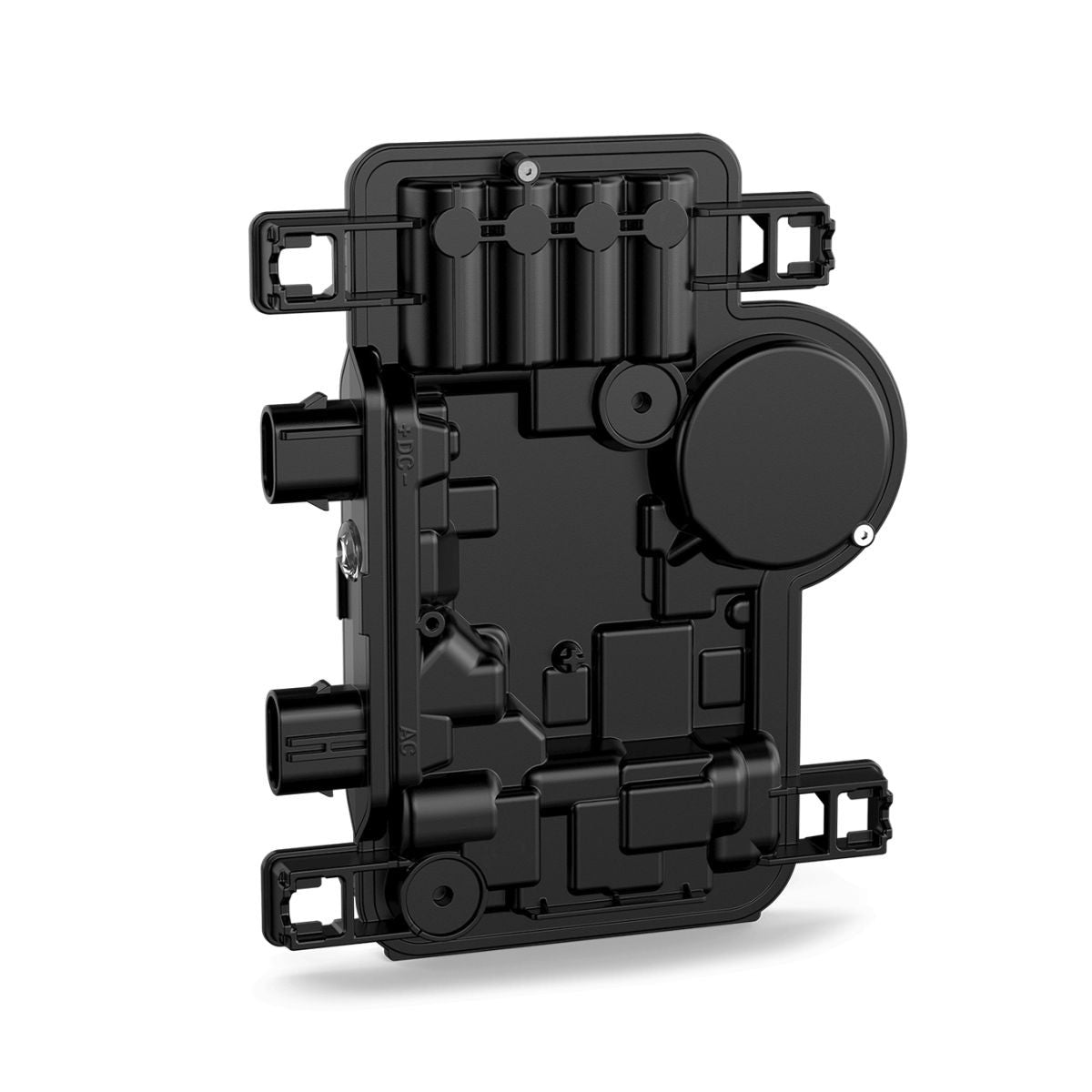

Enphase IQ8MC IQ8-MC Microinverter

• Producer Code: IQ8MC-72-M-INT
• Phases: 1 or 3 (depending on wiring)
• MPP Tracker: 1
• Inputs per tracker: 1
• Rated AC output power: 330 VA
• MPPT operating voltage: 25 - 45 V
• Warranty: 25 years

Technical specifications
• Input current: 14 A
• Short circuit current: 25 A
• Connectivity: Using the Envoy WLAN/Ethernet and app-enabled

Is there a difference between IQ8M/IQ8-M and IQ8MC/IQ8-MC?
- Yes, there are some important differences between Enphase's IQ8M and IQ8MC microinverters. The main differences are:

*Voltage MPP: The IQ8M has a minimum voltage MPP of 30 V, while the IQ8MC has a minimum voltage MPP of 25 V. This means that the IQ8MC is better suited for panels with a lower peak voltage, such as monocrystalline panels.
*Temperature range: The IQ8M has a maximum operating temperature of 65°C, while the IQ8MC has a maximum operating temperature of 80°C. This means that the IQ8MC is more resistant to extreme temperatures.
*Price: The IQ8MC is slightly more expensive than the IQ8M.

In general, the IQ8MC is a better choice for panels with lower peak voltage or for systems operated in extreme temperatures. The IQ8M is a good choice for systems with a limited budget or for systems with panels with a higher peak voltage.

Below you will find a table with an overview of the most important specifications of the two microinverters:

Specification: IQ8M
Type: Microinverter
Voltage MPP: 30V
Temperature range: -40°C to 65°C
Output power: 330W
Price Classe: +/- €299

Specification: IQ8MC / IQ-8MC
Type: Microinverter
Voltage MPP: 25V
Temperature range: -40°C to 80°C
Output power: 330W
Price Classe: +/- €329

Manufacturer product number: IQ8MC-72-M-INT
Weight: 1.1 kg
Rated power: 330 W
Min PPT voltage: 18 V
Max PPT voltage: 60 V
DC Startup voltage: 22 V
DC Shutdown voltage: 18 V
Max input voltage: 30 V
Max DC Power: 480W
Max AC Power (5 Minutes): 330 W
Surge AC Power (1 Second): 325 W
Max DC Current: 14 A
Max DC Inputs: 1
DC Fuses: 0
Connector: MC4
Included Connectors: 0
Transformer: HF
MPPT Quantity: 1
Integrated DC switch?: No
Warranty: 25 years
